  PRODUCTS



Double Wire Fence





Double wire fencing is suited to all types of ball courts and urban kick-around areas.

The system has very high rigidity, with sound damping fixings and goal recesses available. A wide range of colour options is available.

Applications include schools, sports facilities and public spaces.
The panels are manufactured from heavy-duty welded mesh in 2500mm widths. Heights range from 2000 to 6000mm, and increased heights across the goal ends or goal areas can be provided. Mesh apertures measure 200x50m. The panels are extremely rigid and secure, due to the 8mm double horizontal wires one positioned on either side of the verticals.

Panels are manufactured from pre-galvanised wires, with an adhesion coating applied to ensure perfect bonding with a polyester coating (minimum 100µm). The finished is in accordance with Euronorm 10147.

Standard colours are green RAL6005 and black RAL9005. Other colours are available on request.


Double Wire Fence

Height x Width
Panel(mm)

Mesh Size
(mm)

Wire Diameter

Post Height
 (mm)

Wire Diameter
(mm)

Wire Diameter
(mm)

630X2500

50X200

8X2 + 6

6X2 + 5

1100

830X2500

50X200

8X2 + 6

6X2 + 5

1300

1030X2500

50X200

8X2 + 6

6X2 + 5

1500

1230X2500

50X200

8X2 + 6

6X2 + 5

1700

1430X2500

50X200

8X2 + 6

6X2 + 5

1900

1630X2500

50X200

8X2 + 6

6X2 + 5

2100

1830X2500

50X200

8X2 + 6

6X2 + 5

2400

2030X2500

50X200

8X2 + 6

6X2 + 5

2600

2230X2500

50X200

8X2 + 6

6X2 + 5

2800

2430X2500

50X200

8X2 + 6

6X2 + 5

3000

1. For the finish coating ,we can do electric galvanized and PVC coated, hot dipped galvanized and PVC coated, PVC coated without galvanized. The customer can also choose PVC painted finish treating.

2.Other heights and length on request .

This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm) with the high strength and so on.

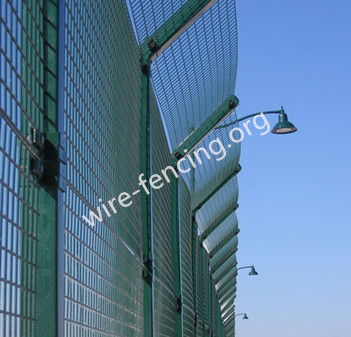

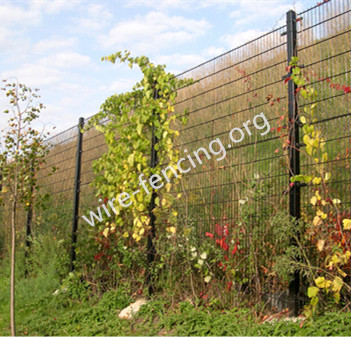

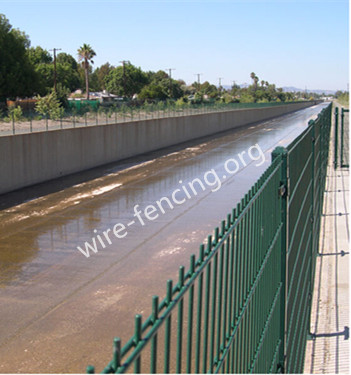

More double wire fence picture






More Product picture pls check https://www.facebook.com/zxyaiwwp/photos_albums
